Isocharge

Accessories

Isocharge accessories include:

> Drum Tipper

> Integrated scale

Drum Tipper

Dec provides a range of cGPM design drum tippers either pneumatically or hydraulically driven depending on the drum weight. The tipper can be adapted to multiple drum sizes.



The tipper has its own local control panel interlocked with the Isocharge door and inflatable seal. For operator safety while operating the tipper, a protection grid around the tipper as well as an alarm horn can be provided.



The system can be designed for use in ATEX zone 1/21.

Integrated Scale



Dec Isocharge can be equipped with an integrated floor scale, which is installed in a sink in the chamber's floor. The scale can be accessed after removing of the scale cover.



The system can be cleaned and the liquid is drained by a drain valve located at the bottom of the sink.

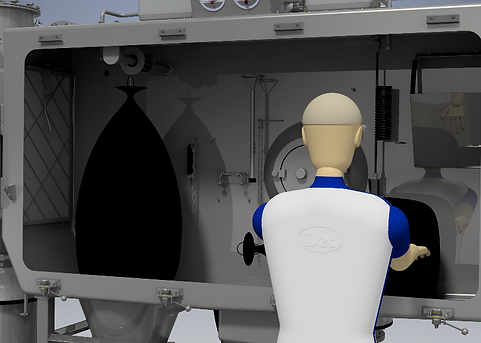

Pulley System With Clutch



To make work easier, Dec Isocharge can be equipped with an automated cGMP designed pulley to enter the bags inside the chamber.



The liners inside the drum are attached by a special single use rope, which is connected inside the Isocharge to the pulley hook.





The pulley can be provided with a clutch system to  quickly unroll the rope for a new bag withdrawal.
